INFORMAZIONI BASE

  • TECNOLOGIA: Box Making
  • INDUSTRIA: Food, Electronics, Personal Care, Pharma & Healthcare, Luxury Goods, Beverage
  • SEGMENTO: Baked Goods, Biscuits & Crackers, Chocolate, Consumer Electronics, Digital Media Carriers, Cosmetics, Fragrances, Soap Bars, Optical, Clothing & Footwear, Jewellery & Watches, Small Leather Goods, Stationery, Other Luxury Goods, Medical Devices, Wine & Spirits

INFORMAZIONI DETTAGLIATE

Range dimensioni scatola
Altezza max scatola (mm)210
Altezza min scatola (mm)12
PRESTAZIONI
Cambio formato scatola15 min
Modalità operativaIntermittent
FOOTPRINT
Profondità macchina (mm)5300
Altezza macchina (mm)3500
Lunghezza macchina (mm)7900
Peso macchina (kg)6000
ALTRE CARATTERISTICHE TECNICHE
Modalità inserimento0
Process produzioneMechatronic solution
Ulteriori informazioni

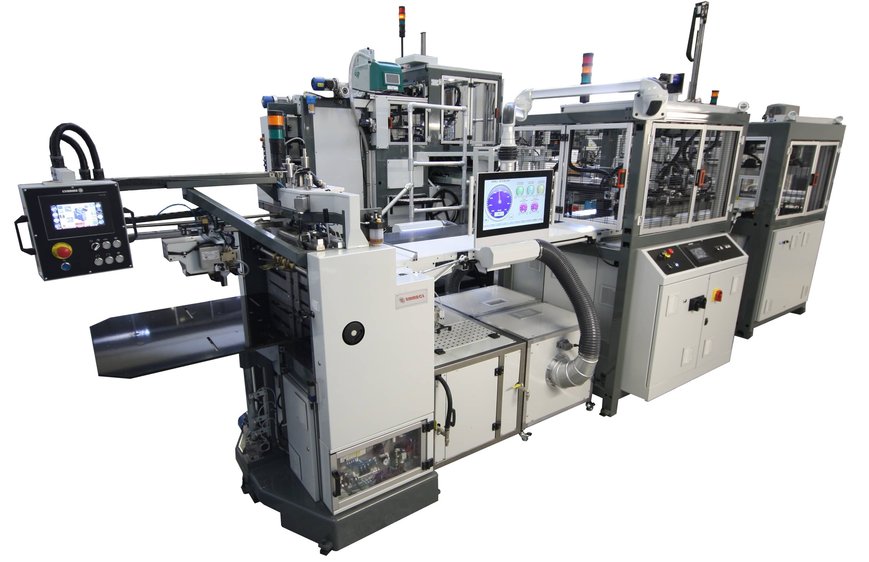

Altre infoThe MC2016 DIGITAL is an automaticdigital line for manufacturing rigid setup boxes, which is revolutionary in terms of: " Technological innovation " Automatic quick glue starting " Vision system (use of cameras) " Stay tape guide system " Better performance " User-friendliness " Digital remote control and assistance The MC2016 DIGITAL line is able to run different box sizes with special shapes. Besides the traditional "stay-tape system" it can also run with "hot-melt" applied to a "v" grooved board.
Packing range
Diametro max imballaggio (mm)0
Diametro min imballaggio (mm)0
CARATTERISTICHE PACKAGING
Materiale packagingPaper, Paperboard
Packaging Shapesquared, rectangular, narrow, sloped, frustum
Tipo packagingCardboard Box
Requisiti normativi
Normative SicurezzaEN ISO 13849-1, EN ISO 13849-2, EN ISO 13857, EN 12100, EN 349, EN 6100-6 -2, EN 6100-6 -4, IEC 60204-1
Dati tecnici
Raggiungimento min (mm)0
Intervallo lavoro (gradi)0
Proposta di valore
Proposta di valoreFlexibility
File allegati
MC2016 DIGITAL - 00.pdfDOWNLOAD
Video
MC2016DigitalWATCH
