MC2004 MEB

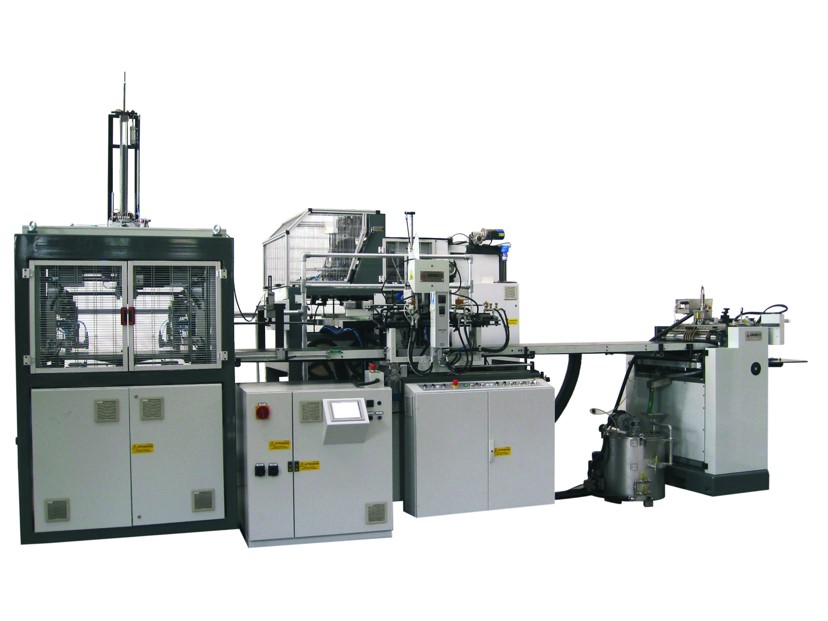

Automatic mechatronic line for the production of rigid cardboard wrapped set-up boxes.

Basic Info

  • TECHNOLOGY: Box Making
  • INDUSTRY: Food, Electronics, Personal Care, Home Care, Pharma & Healthcare, Luxury Goods
  • SEGMENT: Baked Goods, Chocolate, Consumer Electronics, Digital Media Carriers, Cosmetics, Fragrances, Air Care, Optical, Board Games & Puzzles, Clothing & Footwear, Jewellery & Watches, Small Leather Goods, Other Luxury Goods, Medical Devices, Luxury Boxes

Detailed Info

Box size range
Max box height (mm)210
Min box height (mm)12
Max box length (mm)600
Min box length (mm)83
Max box width (mm)400
Max box width (mm)31
Footprint
Machine depth (mm)4360
Machine height (mm)3700
Machine length (mm)7000
Machine weight (kg)5200
Packaging features
Packaging materialPaper, paperboard
Packaging ShapeSquared, rectangular, narrow, sloped, frustum
Packaging typeCardboard box
Regulatory requirements
Safety RegulationsEN ISO 13849-1, EN ISO 13849-2, EN ISO 13857, EN 12100, EN 349, EN 6100-6 -2, EN 6100-6 -4, IEC 60204-1
Technical data
Max cardboard lenght (mm)860
Max cardboard width (mm)740
Min cardboard width (mm)90
Min cardboard length (mm)90
Other technical features
Motion controlMechatronic
